Product Parameters
| Material Composition | 100% Virgin Bayer® Polycarbonate Resin (UV-stabilized) |

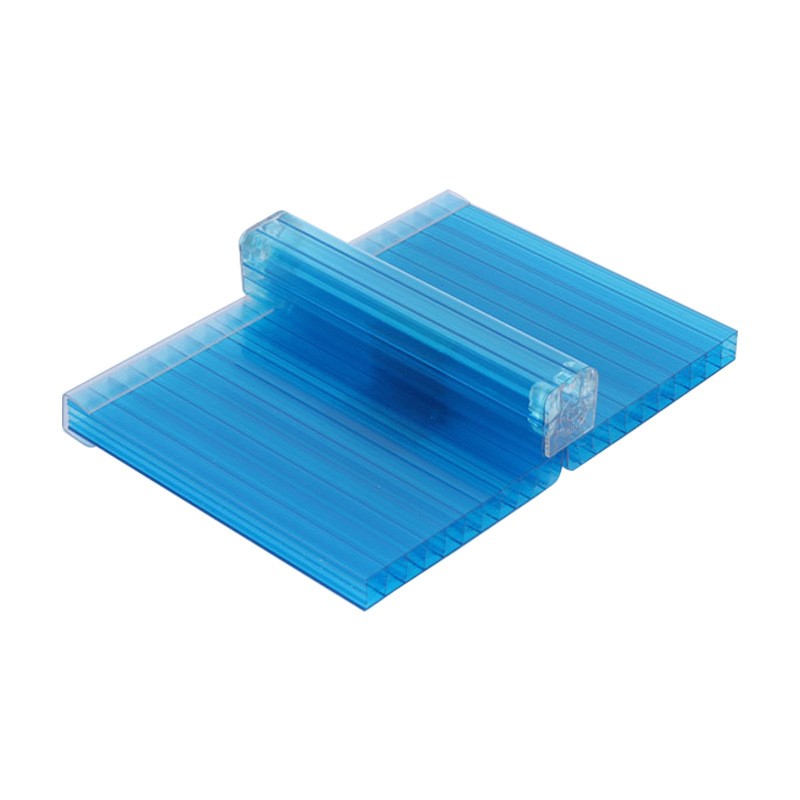

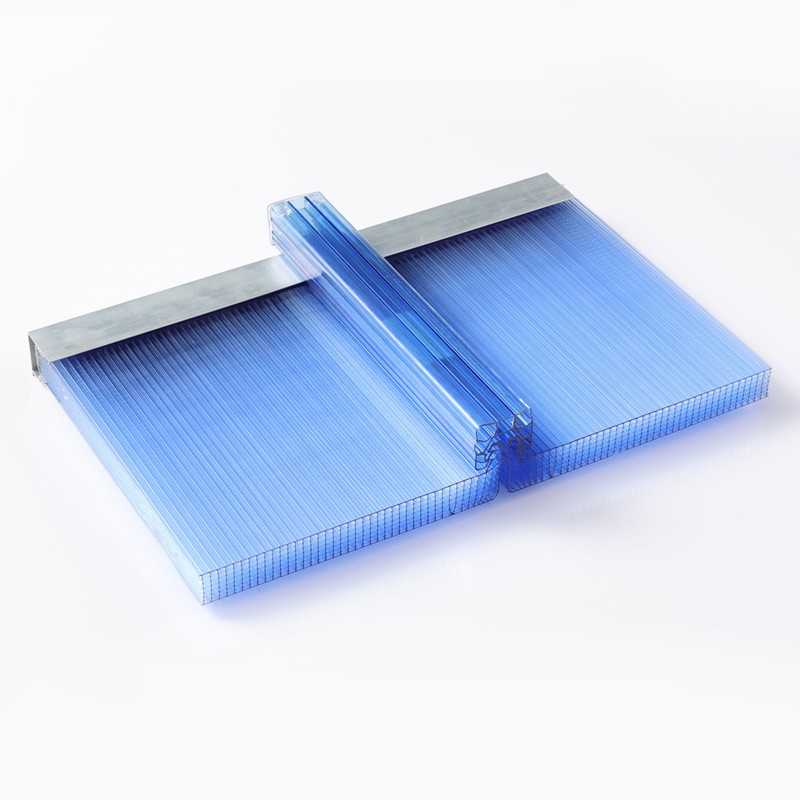

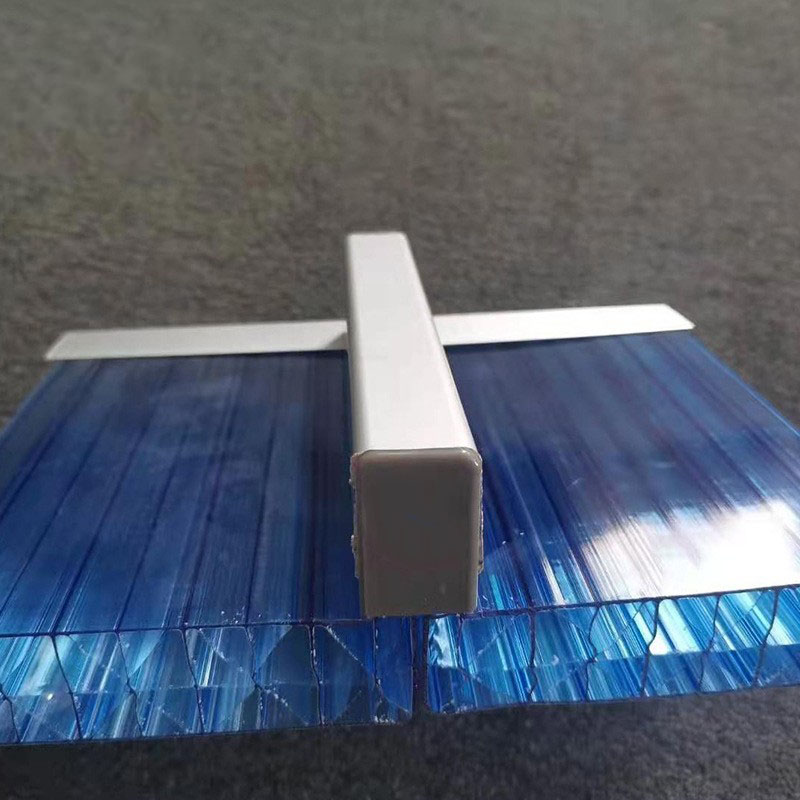

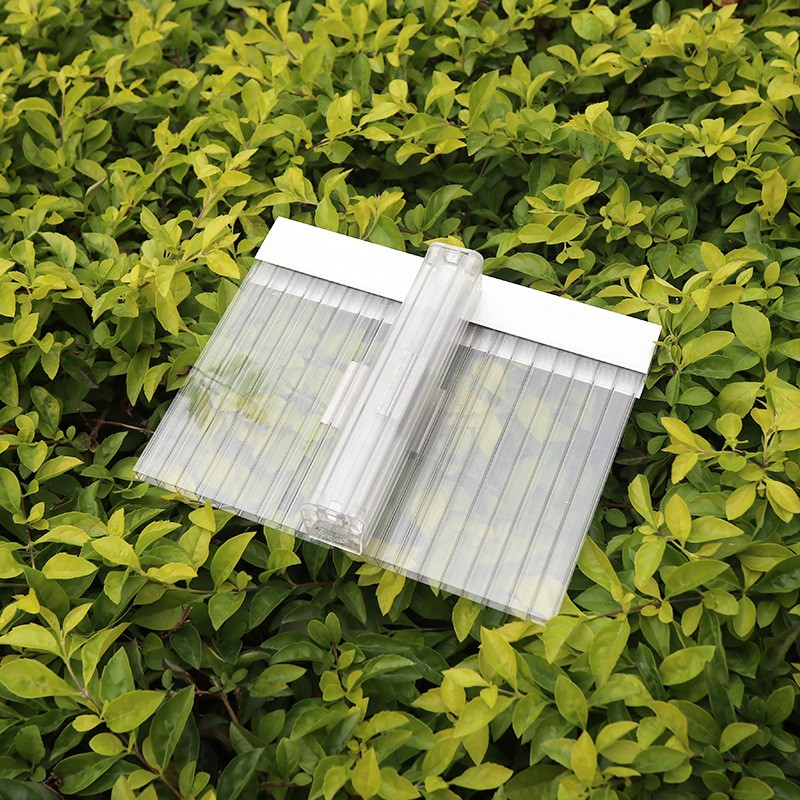

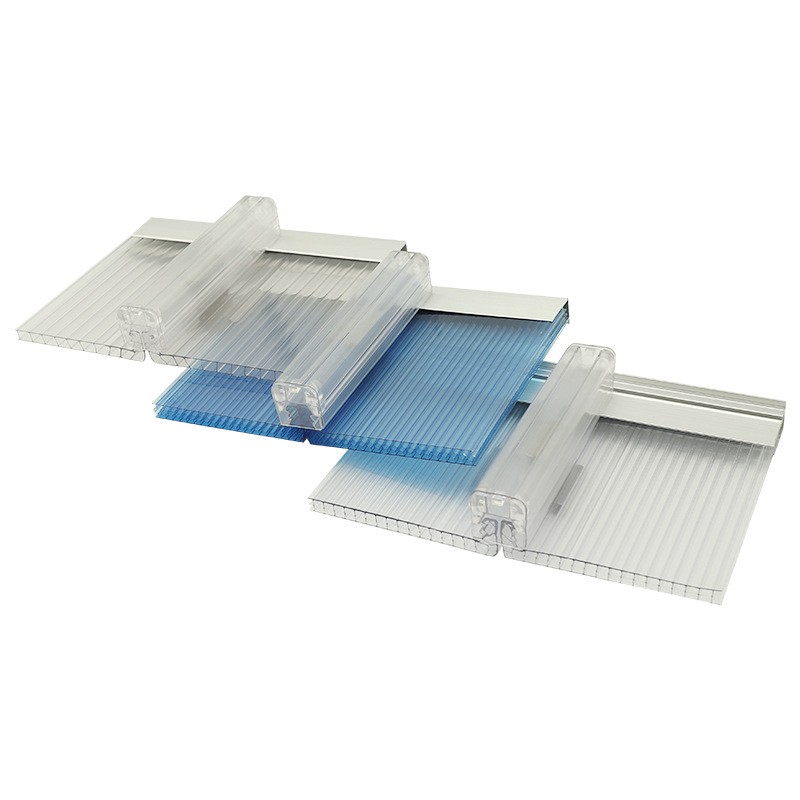

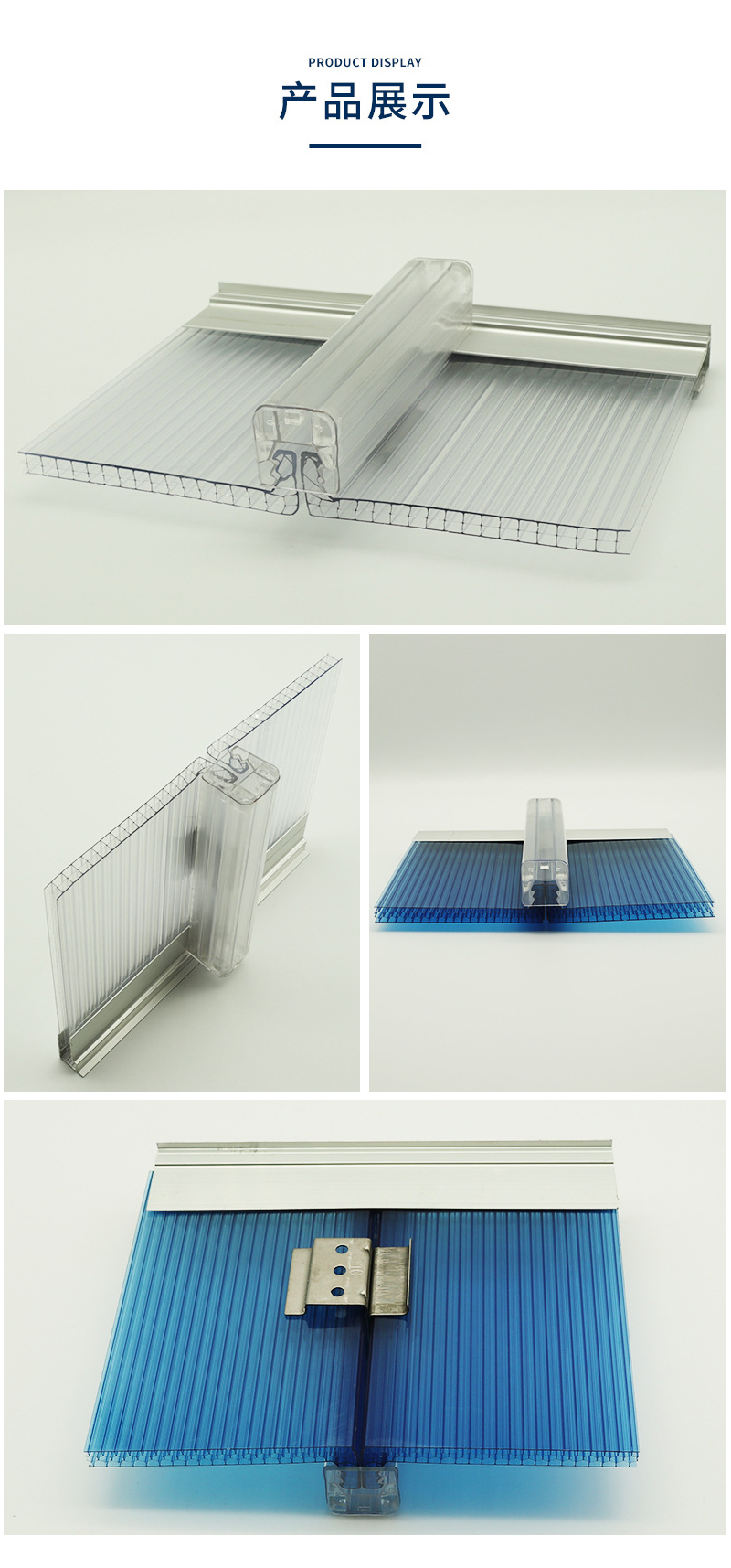

| Structural Profile | U-Shaped Interlocking System with Multi-Wall Structure |

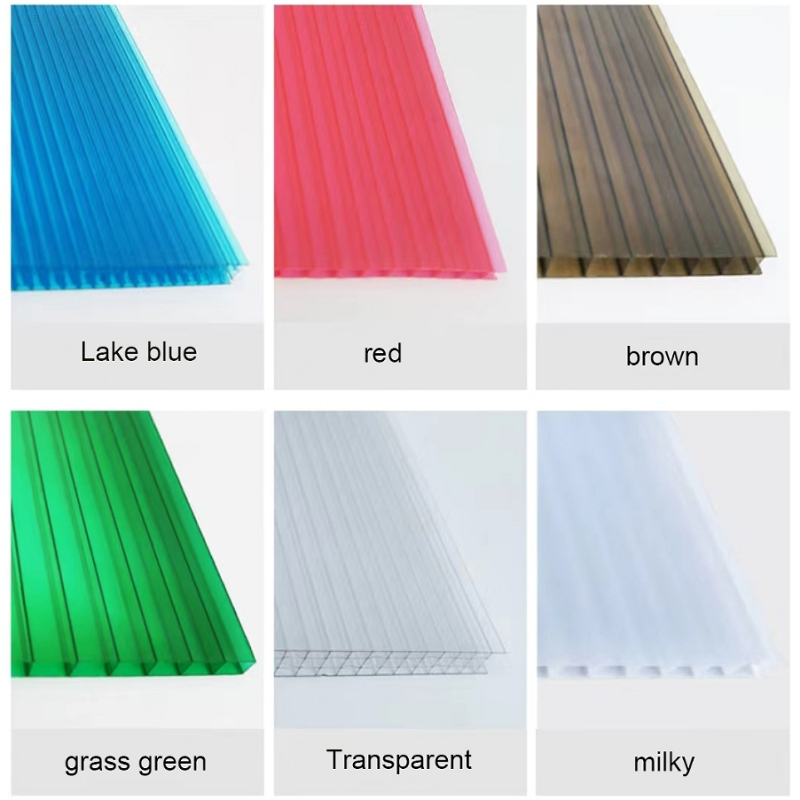

| Available Colors | Clear, Opal, Grass Green, Lake Blue, Bronze, Brown + Custom RAL/Pantone Matches |
| Thickness Range | 4-40mm (±0.5mm tolerance) [Standard: 8/10/16/20/40mm] |
| Panel Dimensions | Width: 600/1040/1220/1560/1820/2100mm |
| Length: Custom up to 12,000mm | |
| UV Protection | 50μm Co-extruded Layer (ISO 4892-2 Certified) |
| Light Transmission | 18%-82% (Clear: 82% ASTM D1003; Tinted/Opaque: 18%-75%) |
| Certifications | ISO 9001:2015 Quality System |
| CE Marking (EN 1013-1:2017) | |
| Thermal Performance | Operating Range: -40°C to +120°C (EN 13583 Certified) |
| Mechanical Properties | Tensile Strength: ≥65 MPa |
| Impact Resistance: 850 J/m (ISO 179) | |

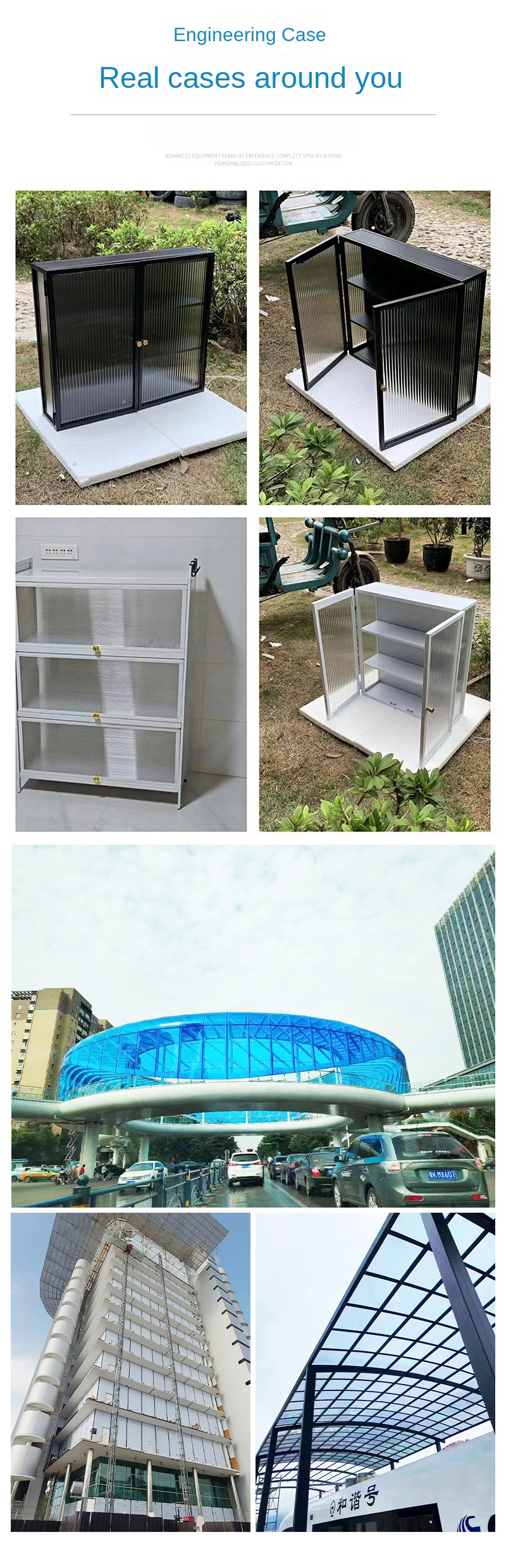

| Applications | Skylights, Greenhouses, Industrial Roofing, Sound Barriers, Canopies, Dome Structures |

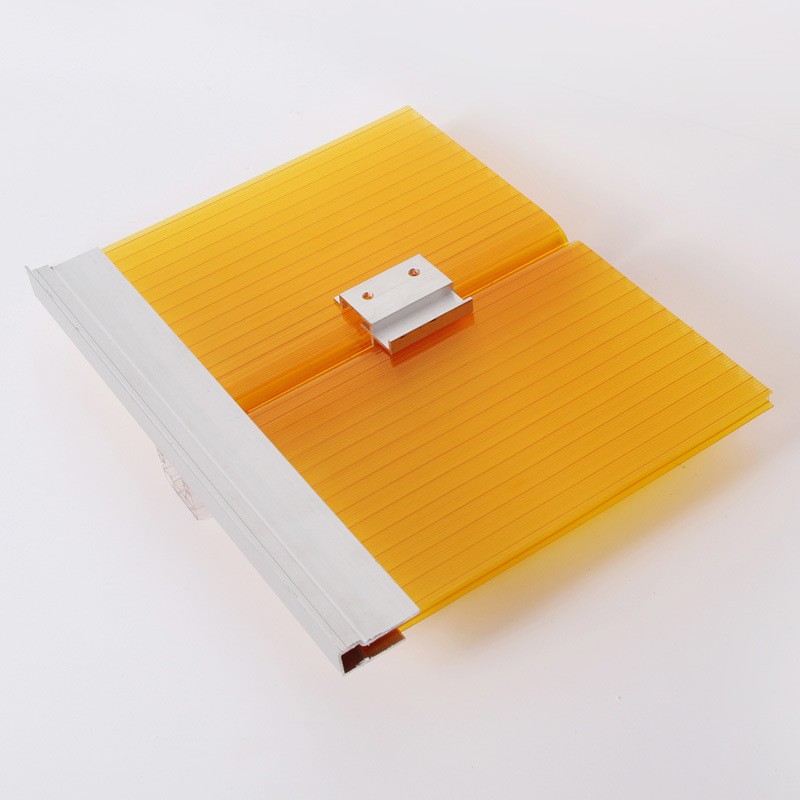

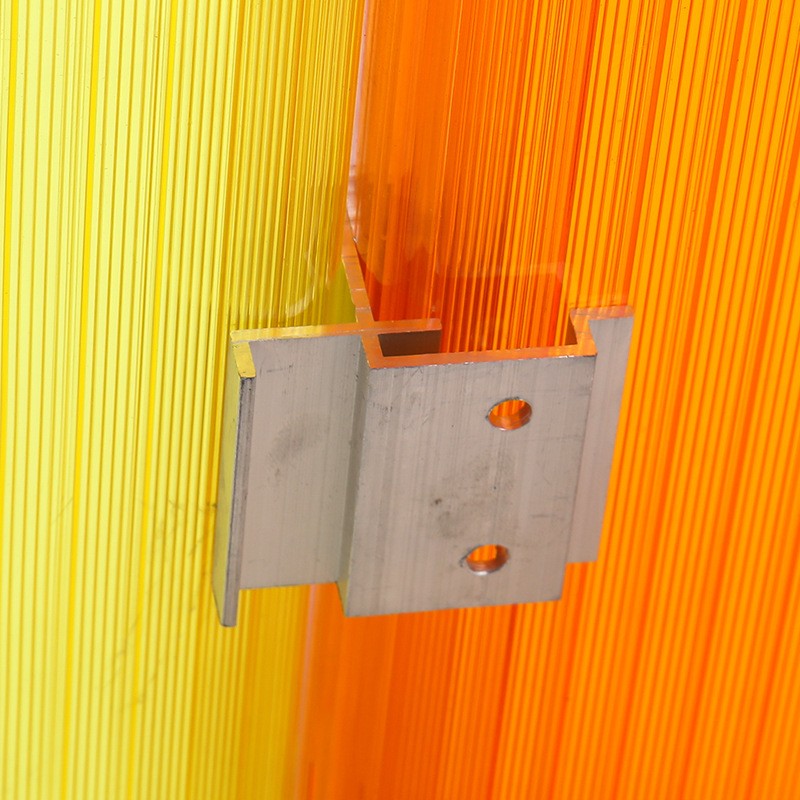

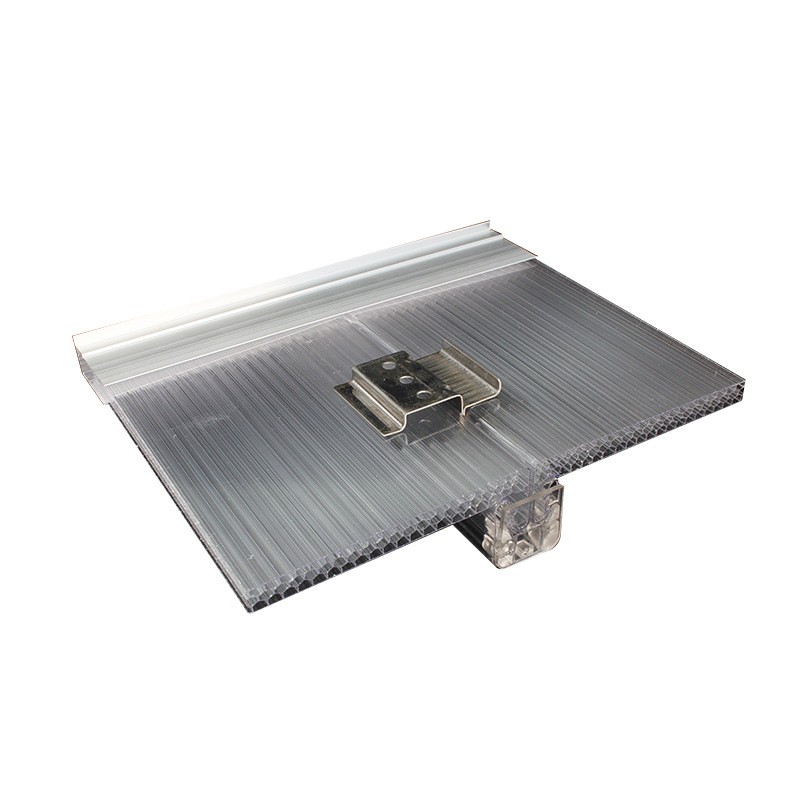

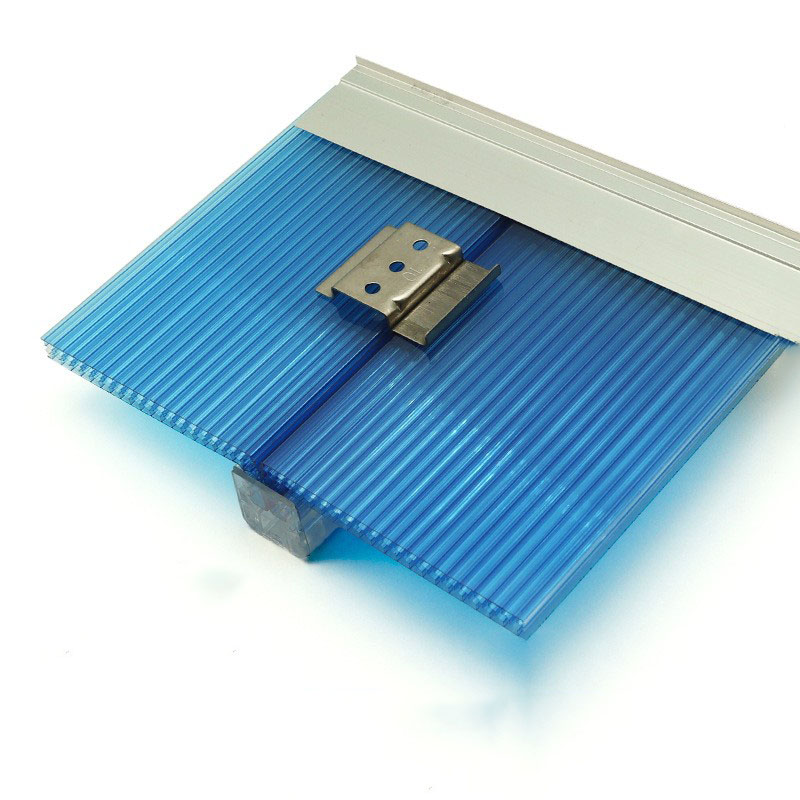

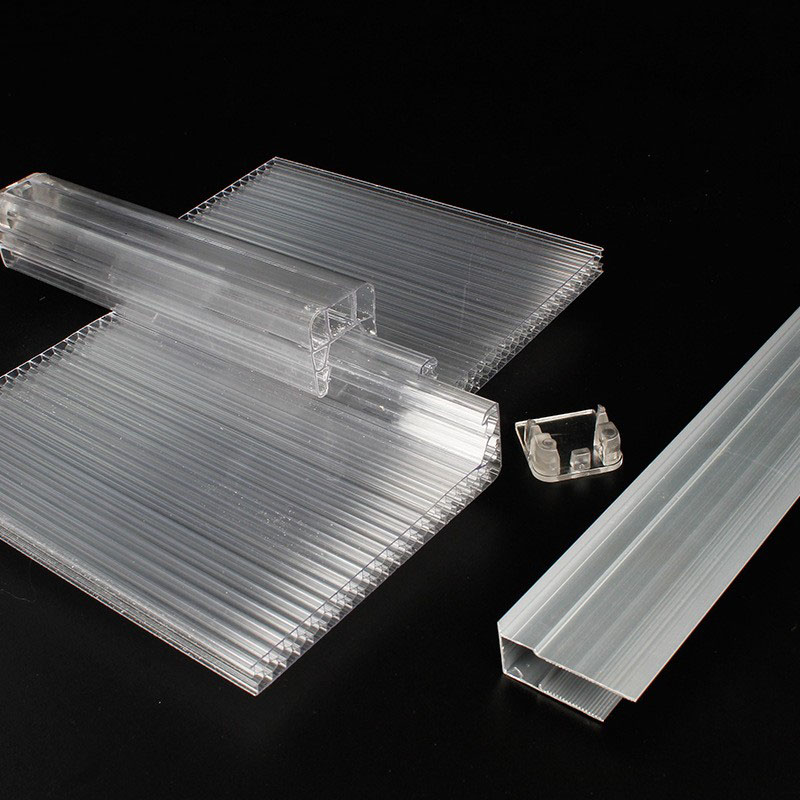

| Accessories | Integrated U-Channel Locking System + Compatible Fixing Kits |
| Quality Assurance | 10-Year Limited Warranty Against Yellowing & Structural Degradation |
| Customization | OEM Branding Accepted |
| Custom Sizing & Packaging Solutions | |
| Sampling | Free Production-grade Samples (EXW Terms) |
